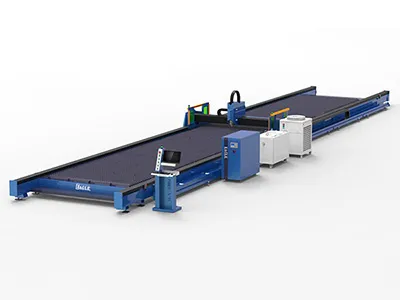

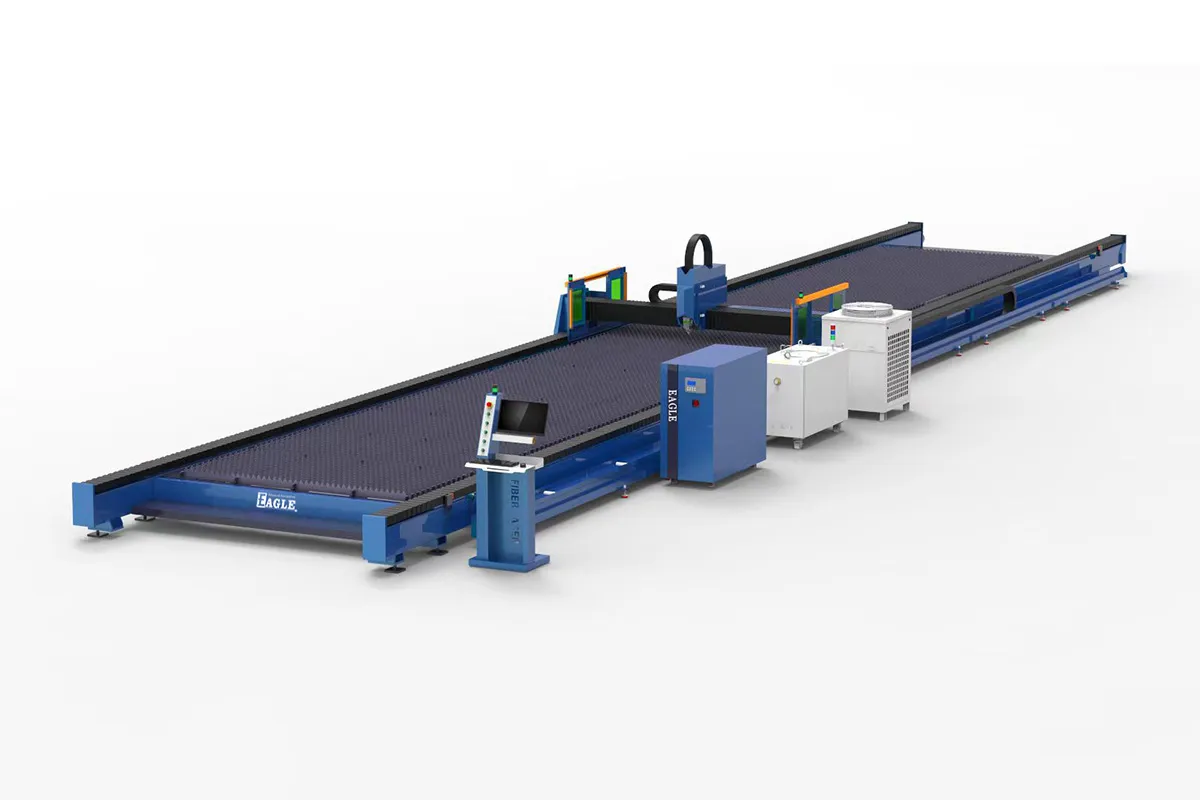

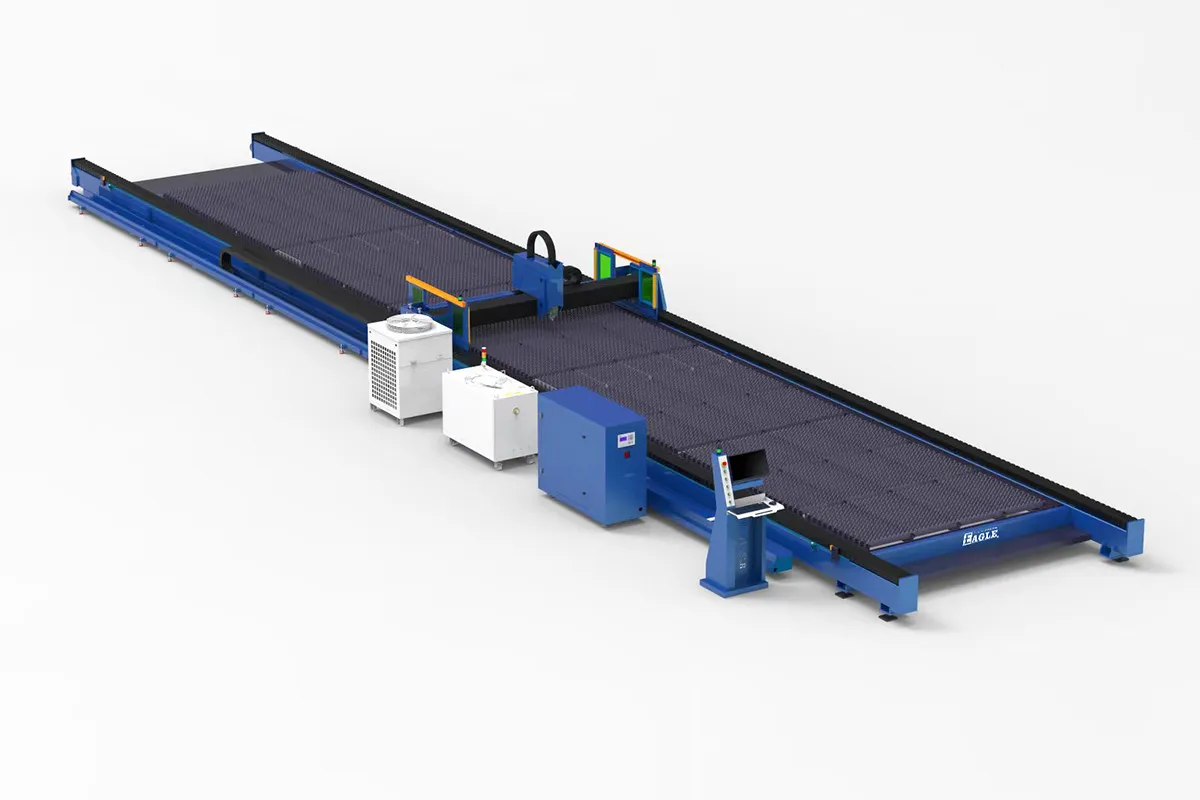

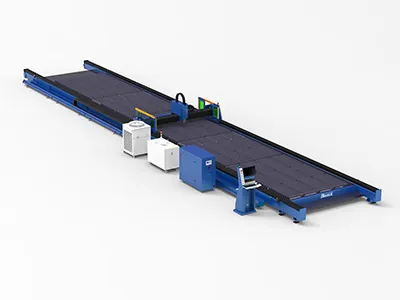

This laser cutting machine features a dual-drive gantry system with a rail mounted gantry structure delivering high accuracy in large scale projects. The rack and pinion transmission system iscomplemented by a centralized lubrication system that minimizes its downtime and makes maintenance simpler. The loading worktable is designed with stainless steel edges and universal ball bearings to effectively prevent scratches on the sheets and damage to the machine's paint, significantly extending the machine's service life and reducing the operator’s workload. It can easily handle processing tasks longer than 12 meters, providing convenience for large-scale engineering projects and specialized industries, thereby greatly improving production efficiency and product quality.

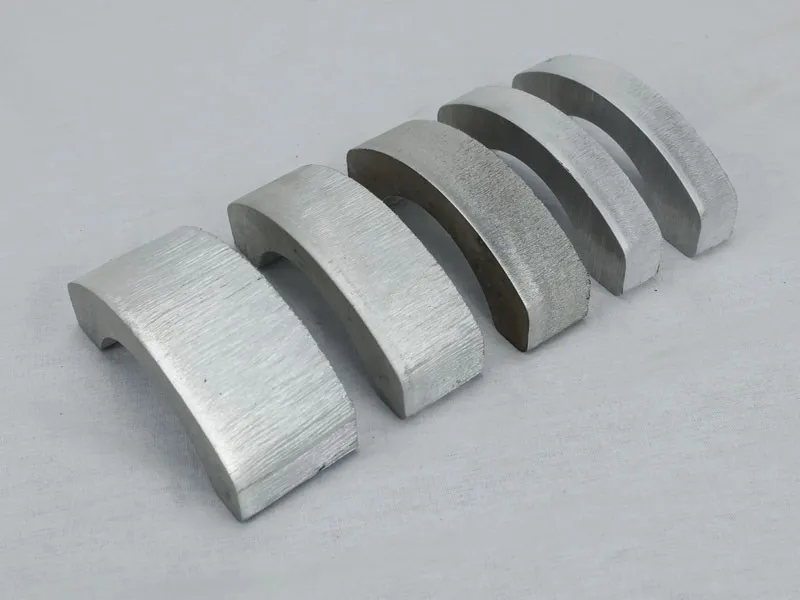

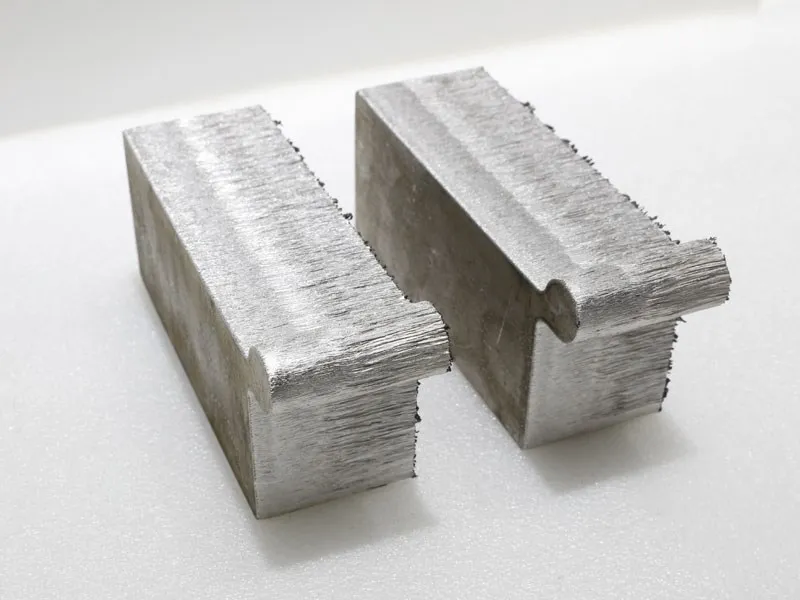

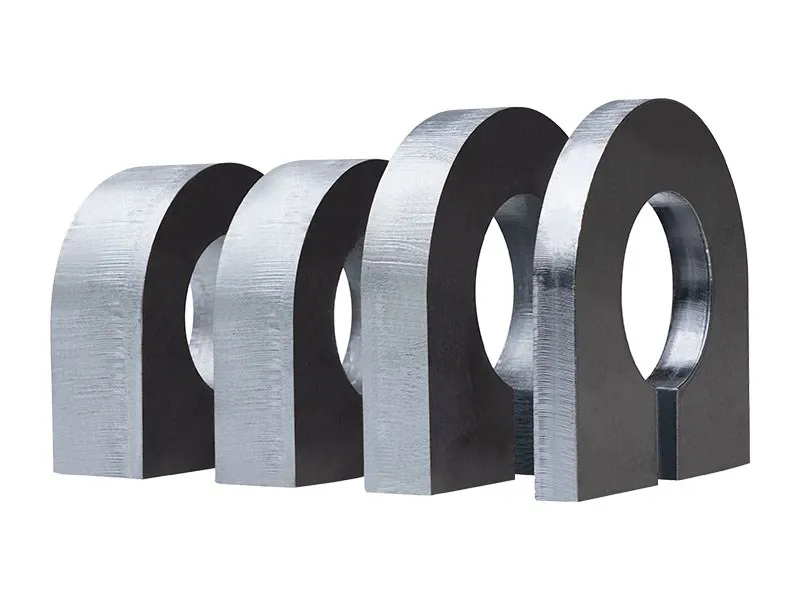

Aluminum

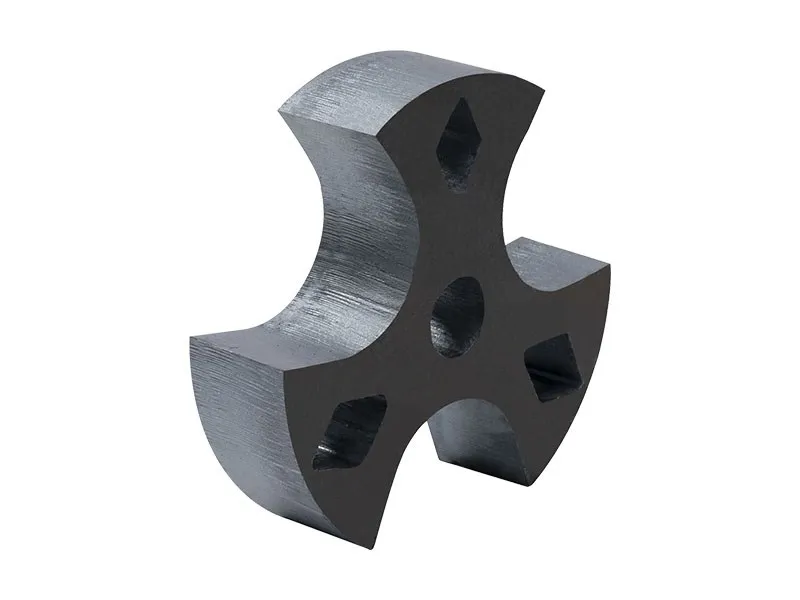

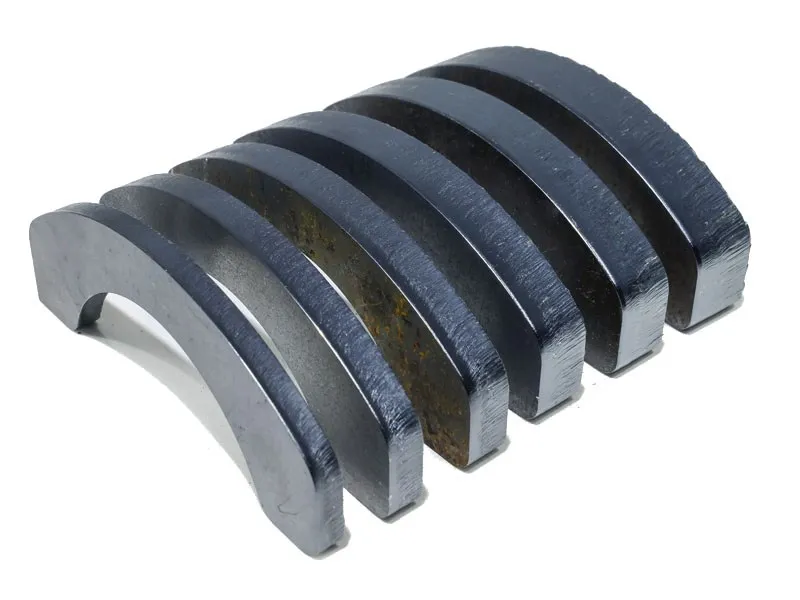

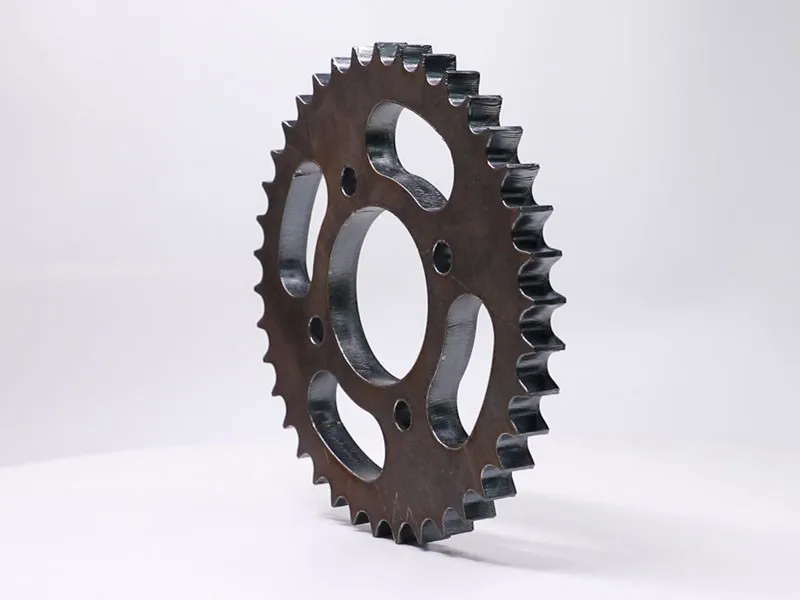

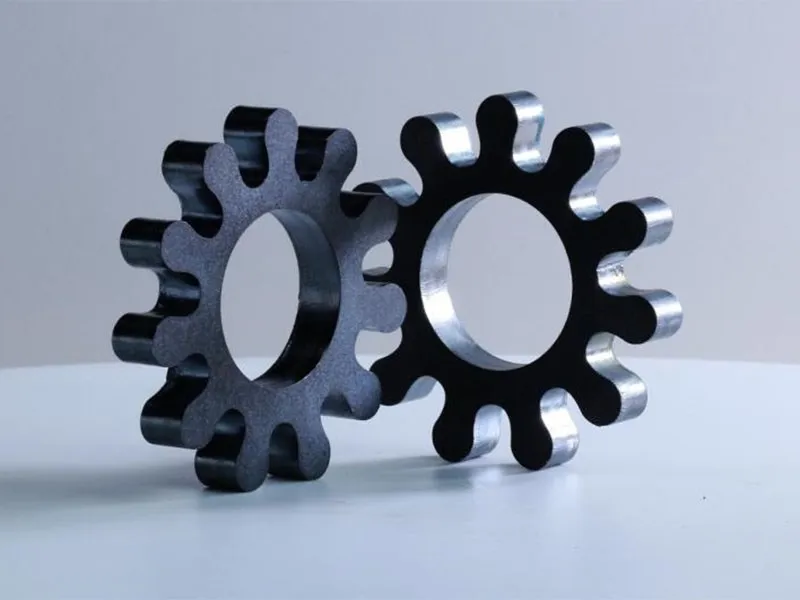

Carbon Steel
| Model | VF-12025 |
| Working Area | 12000×2500mm (customizable) |
| X-Axis Stroke | 2500mm |
| Y-Axis Stroke | 12000mm |
| Laser Power | 20000W |
| X/Y Axis Positioning Accuracy | ±0.05mm/m |
| X/Y Axis Repeatability | ±0.03mm |
| Max. Speed | 90m/min |
| Phase | 3 |
| Rated Voltage | 380V |
| Power Protection Level | IP54 |

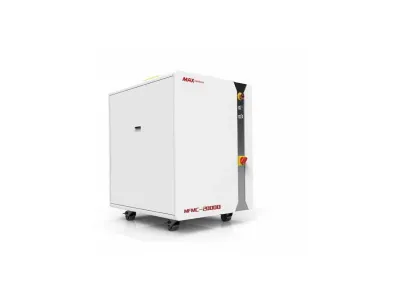

The fiber laser source incorporates unique, innovative hardware-level protection against high reflectivity, enabling the processing of various highly reflective materials, which are often challenging for standard laser systems.
Features common-line piercing detection, which improves processing efficiency. It also includes blast protection monitoring for safety and collision protection for easier maintenance.
FSCUT8000 high-power bus system is an intelligent bus system specifically designed to meet the demands of fiber laser cutting at 8kW and above. It offers convenient deployment, enhanced production safety, and superior performance.

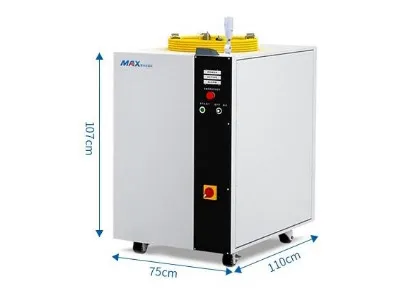

This laser source is 80% smaller, saving significant floor space. It can be mounted on the beam and excels in cutting highly reflective materials. Compared to a 20kW multimode (150μm) laser, it increases the cutting speed of copper by 8%-30%.

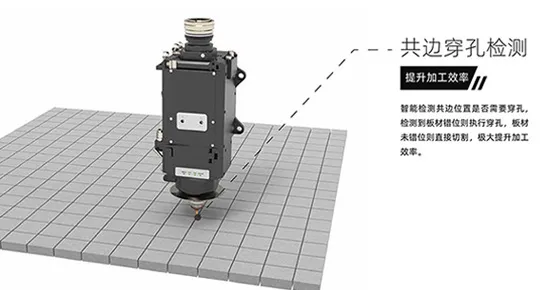

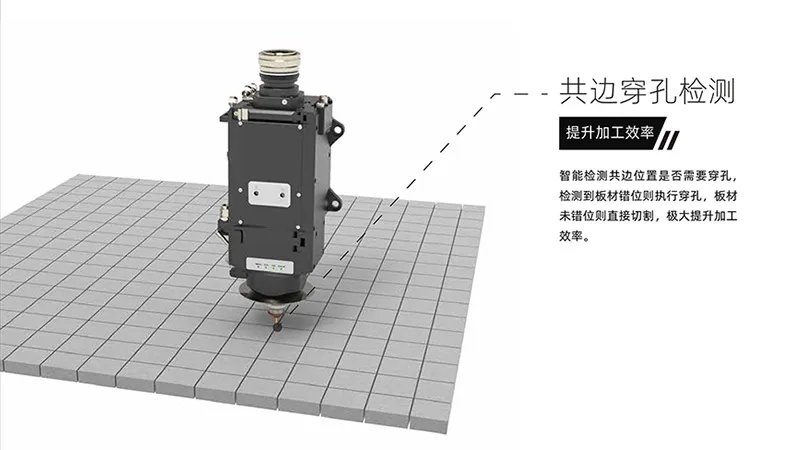

The CNC cutting system intelligently detects whether the common-line punching is required before the cutting operation begins. If misalignment is detected, a punching operation is executed along the common line to ensure that the laser cuts precisely along the desired path, starting at the correct point. If not, cutting proceeds directly, greatly improving processing efficiency by eliminating unnecessary steps and speeding up the process.

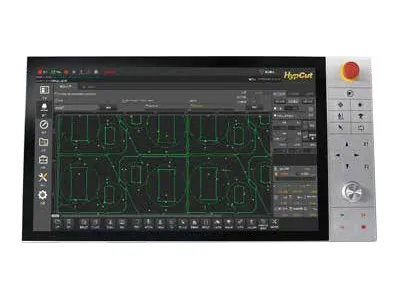

The CypCut is a dedicated laser cutting control system, known for its high integration, comprehensive functionality, ease of operation, and high stability. It supports ultra-thick plate piercing, enhancing the machine's capability with thick materials.
The rail mounted laser cutting machine offers a much larger processing capacity compared to traditional cutting machines, which are typically limited to smaller dimensions. This laser cutting machine's larger working area allows it to easily handle tasks over 12 meters in length, making it ideal for large-scale projects.
The standard processing area is 12000×2500mm. Additional customization options are available if different dimensions are required.
The rail mounted laser cutting machine employs a stable track system that ensures cutting stability and precision. Its ground rail structure allows the machine to be securely anchored to the floor, effectively reducing vibration during cutting and ensuring superior cutting quality. Unlike traditional cutting machines, which are typically suited for small-scale cutting, the rail mounted laser cutter offers a much larger processing area, capable of easily handling tasks over 12 meters in length. This makes it an ideal solution for large-scale engineering projects and specialized industries, significantly enhancing production efficiency and product quality. The rail mounted laser cutting machine also features a broad cutting range, capable of processing materials such as carbon steel, stainless steel, and aluminum alloys, whether in metal sheets or plates, demonstrating strong adaptability, making it a valuable asset for industries requiring extensive and precise metal cutting.
