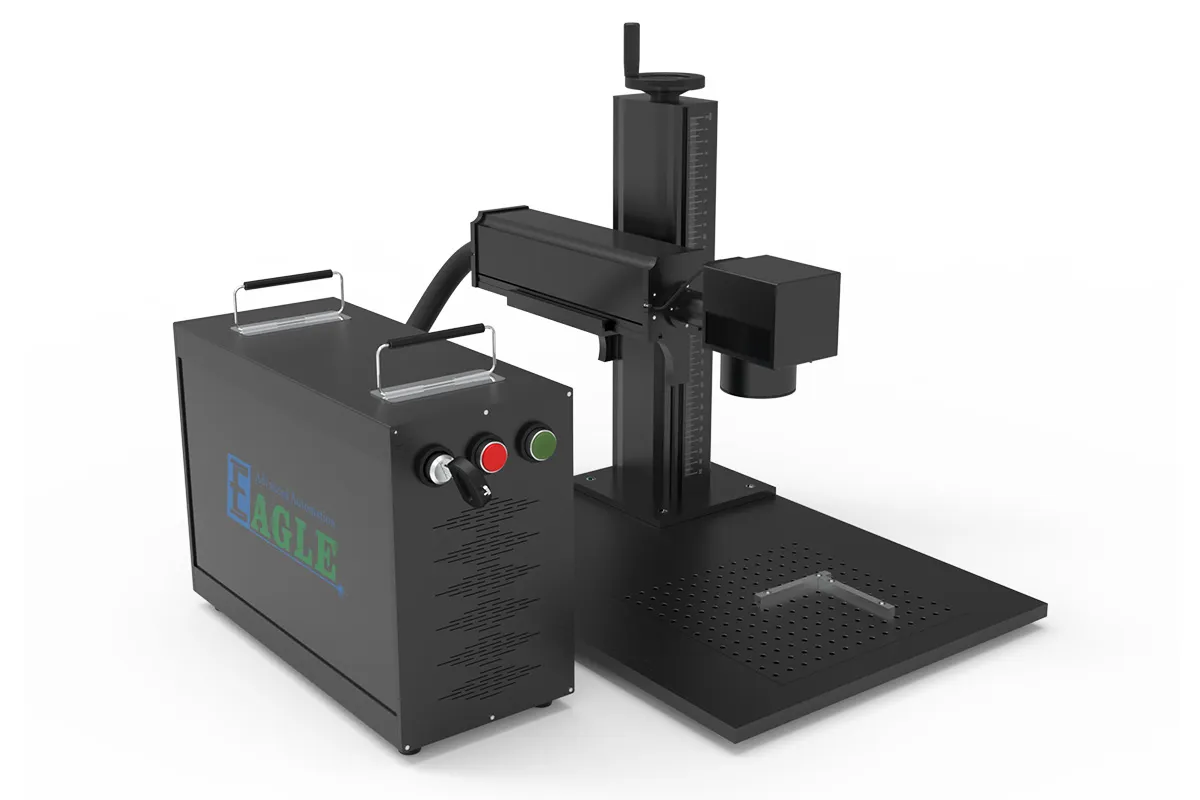

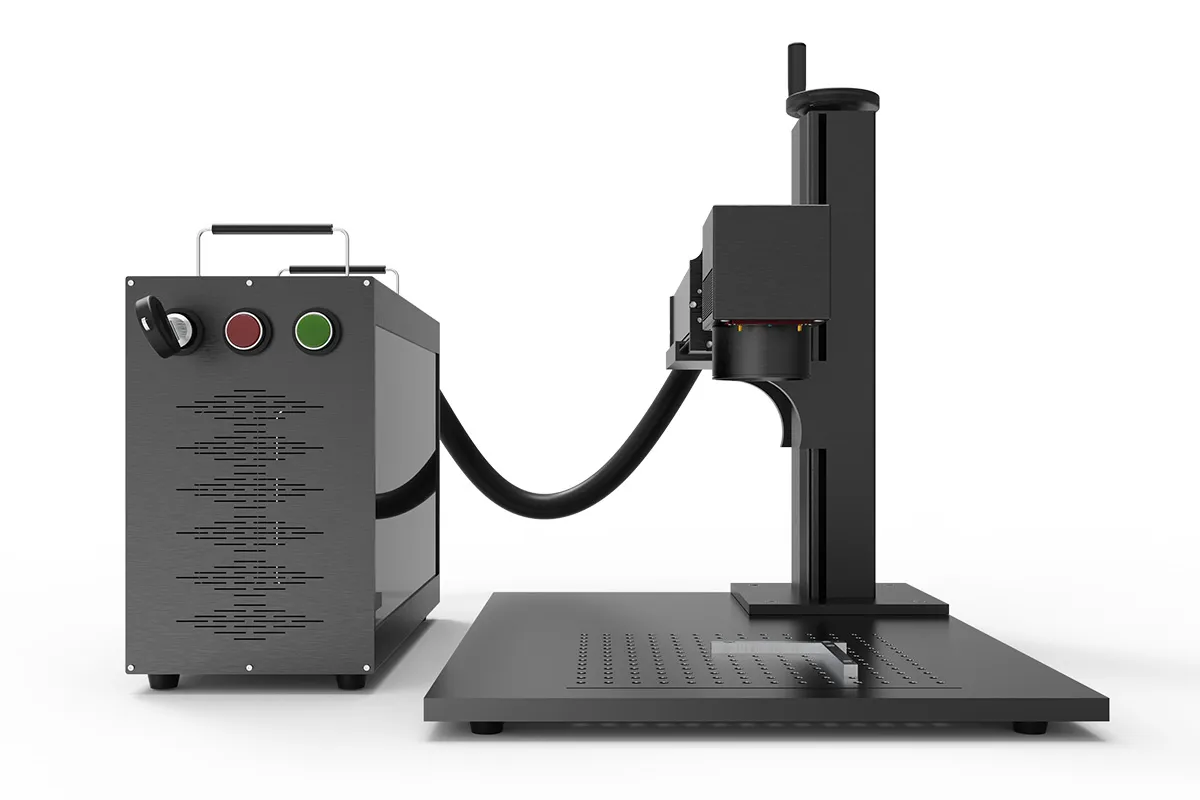

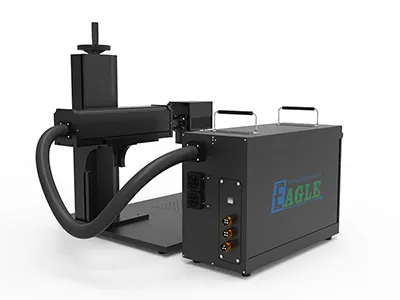

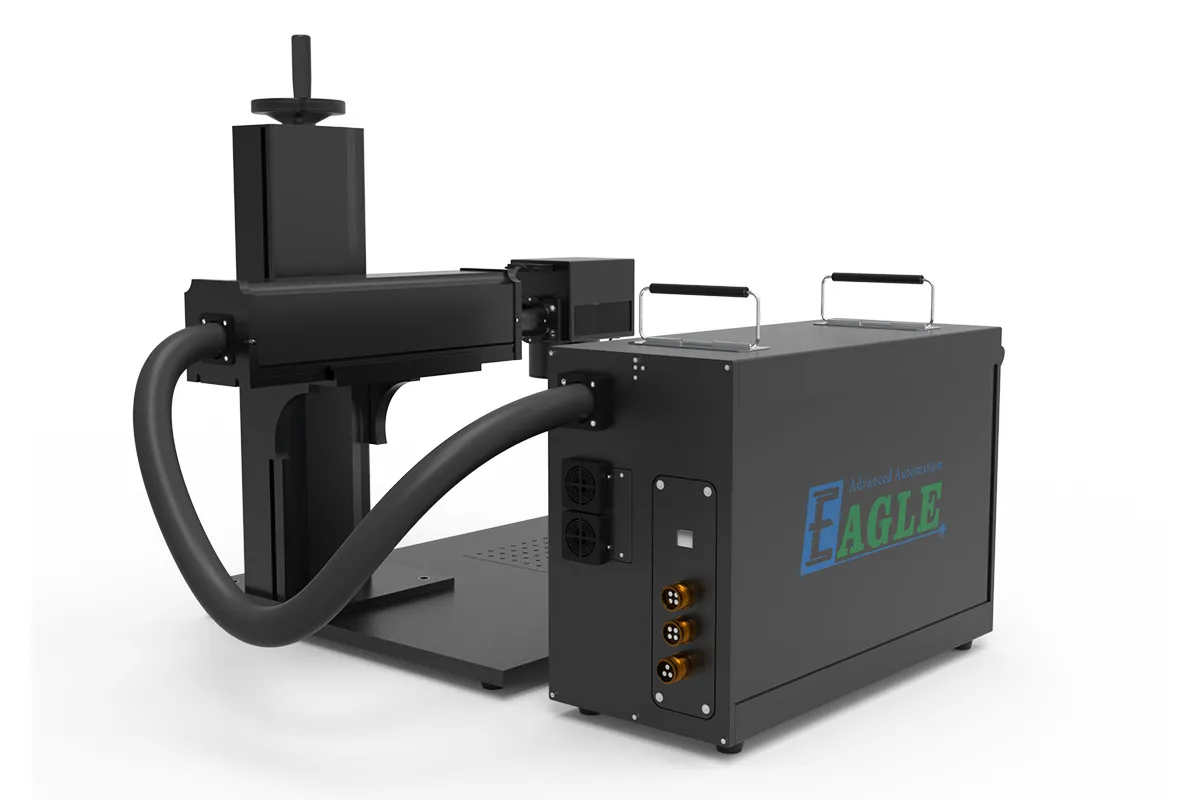

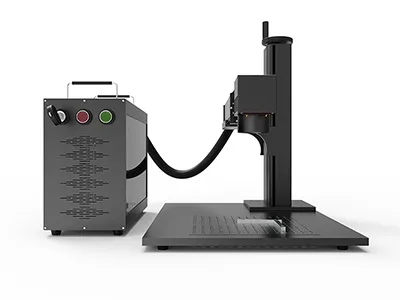

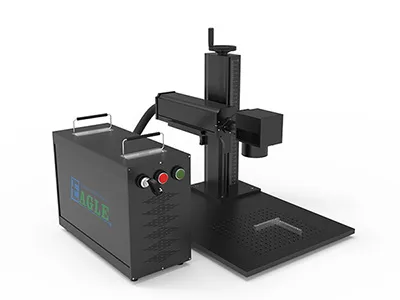

Split fiber laser marking machine is our most compact fiber laser marking machine, offering a low-cost yet high-quality solution for businesses transitioning from traditional engraving, etching, and surface marking methods to laser technology. It is designed primarily for marking metals, engineering plastics, and other materials, delivering exceptional performance with an energy consumption of just a few hundred watts, lower than most household appliances. This makes it not only cost-effective but also environmentally friendly, proving to be an ideal choice for businesses looking to reduce their carbon footprint.

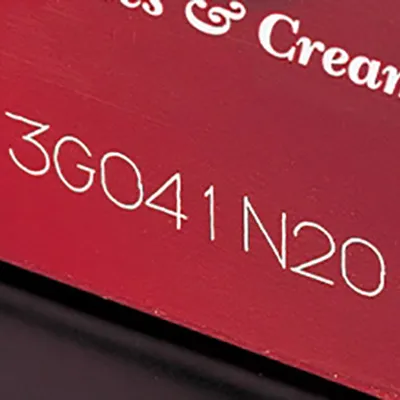

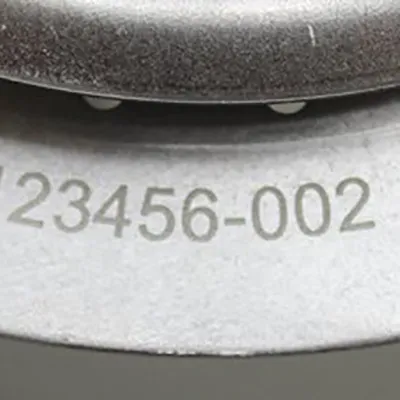

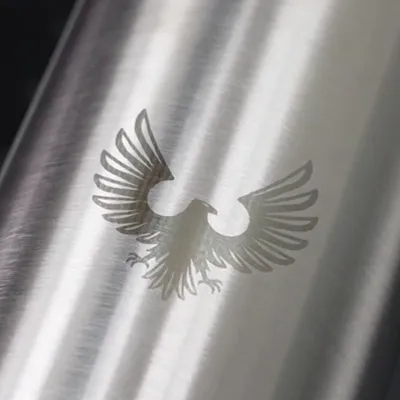

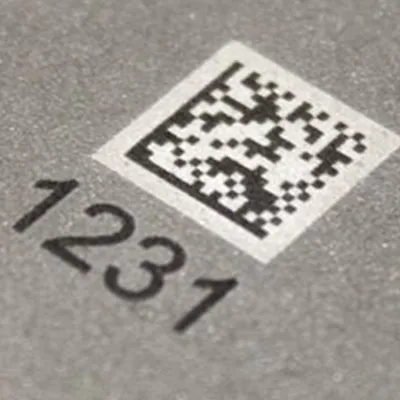

This machine excels in various marking techniques, including deep engraving, etching, color change, or surface marking. It can easily mark graphics, text, logos, barcodes, and more, making it an ideal solution for diverse applications.
| Model | F2-MOPA |
| Laser Source | Fiber laser |
| Laser Power | 30W |
| Laser Wavelength | 1064 nm |
| Working Area | 4×4inch / 7×7inch |
| Beam Diameter | 7±0.5mm |
| Marking Speed | ≤5000mm/s |
| Min. Line Width | 0.03mm |
| Min. Character | 0.3mm (depending on materials) |
| Marking Depth | ≤0.5mm (adjustable based on materials) |
| Repeat Accuracy | ±0.002 |
| Power Supply | Optional: AC220V/50Hz or 60Hz |
| Temperature/ Humidity | 0~35℃/10~95% |
| Power Consumption | ≤800W |
| Cooling Method | Air cooling |
The above parameters are based on laboratory testing and may vary under actual operating conditions

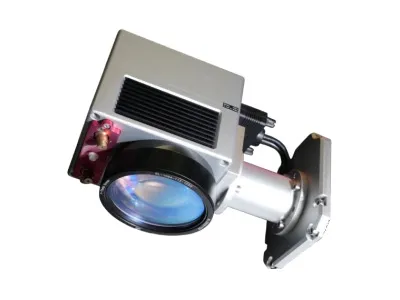

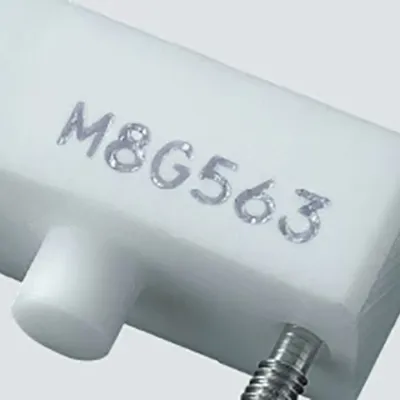

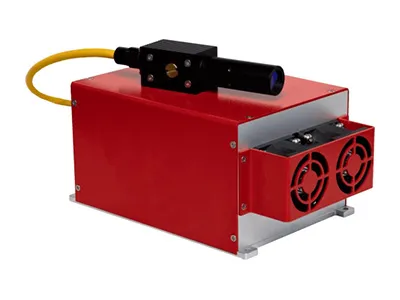

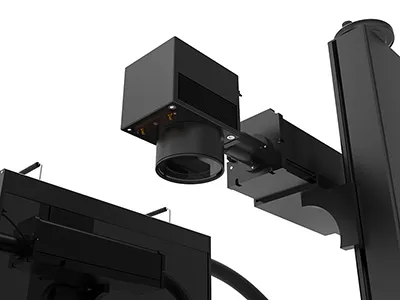

The JPT M7 series of laser marking machine utilizes a high-power fiber laser with a MOPA (master oscillator power amplifier) configuration, where a directly modulated semiconductor laser serves as the seed source. Compared to Q-switched fiber lasers, The independent control over pulse frequency and pulse width allows MOPA fiber lasers to mark a variety of materials, including metals, plastics, and ceramics, with high precision. This flexibility allows for constant high peak power output and makes the laser suitable for a wider range of marking substrates.

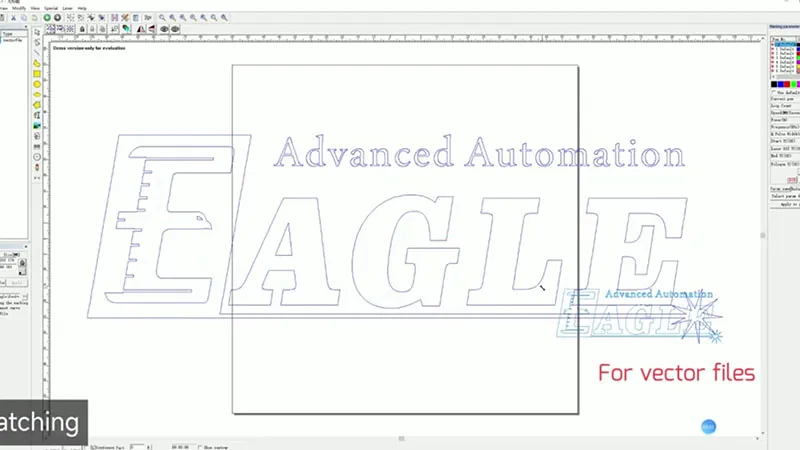

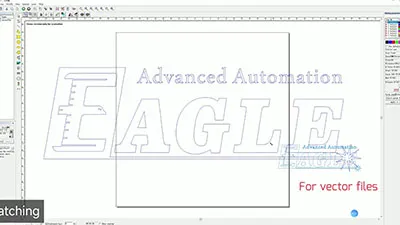

Split fiber laser marking machine utilizes powerful marking software, such as EZCAD, and is compatible with files from popular design programs like Coreldraw, AutoCAD, and Photoshop. It supports a wide range of file formats including PLT, PCX, DXF, and BMP, and allows the direct use of SHX and TTF fonts. The software is capable of marking various graphics, text, logos, barcodes, and QR codes. Additionally, it offers comprehensive features for design, editing, importing, and exporting, making it a versatile tool for all your marking needs.
Yes, the 30W fiber laser system can mark on curved surfaces, 3D curves, and even perform 360-degree rotational marking when equipped with a rotary axis attachment.
Yes, operating a MOPA laser marking machine is safe as long as you receive proper training and follow the provided safety guidelines. Always wear protective eyewear when using the laser marking machine.
Yes, our laser marking machines are equipped with comprehensive safety features and comply with local safety standards and regulations.

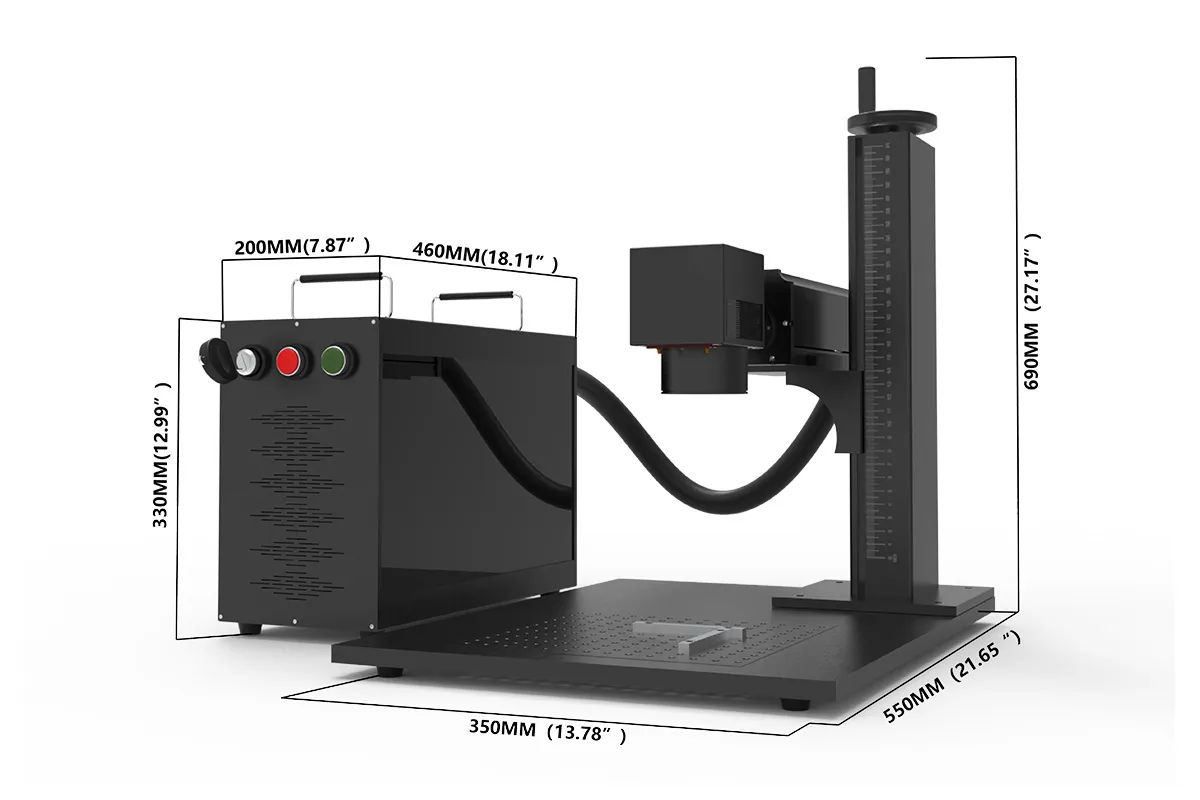

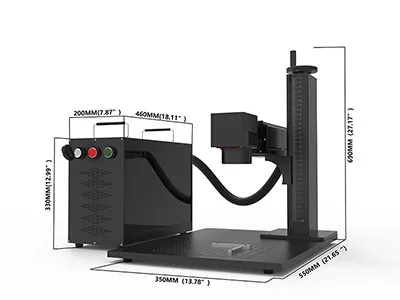

This laser marking machine features an integrated design with a compact and small footprint, easy to install and operate, making it an ideal choice for a limited workspace.

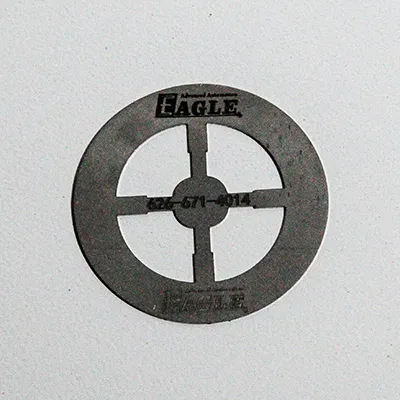

The enclosed fiber laser marking machine offers everything you need for etching and engraving various metals, stones, and tiles.
Our laser machines are designed with advanced, high-precision technology, ensuring consistent performance and accuracy throughout their entire service life
