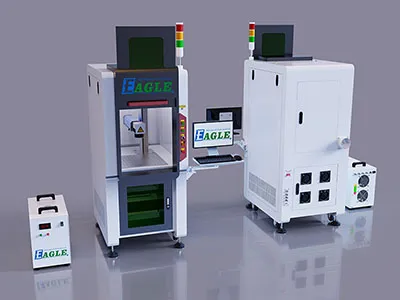

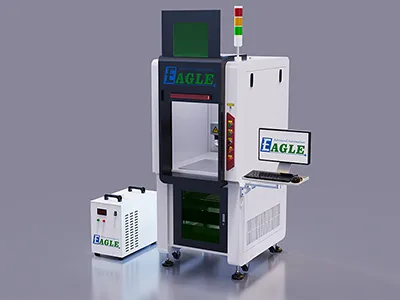

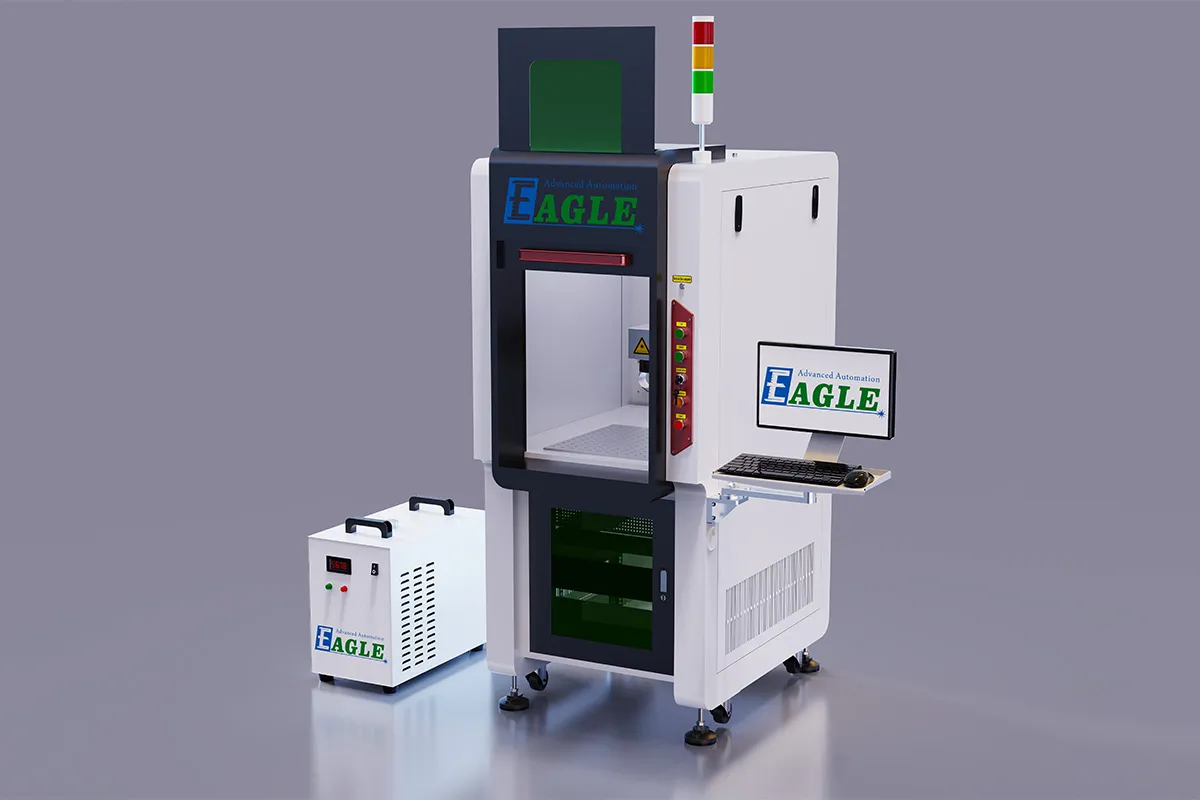

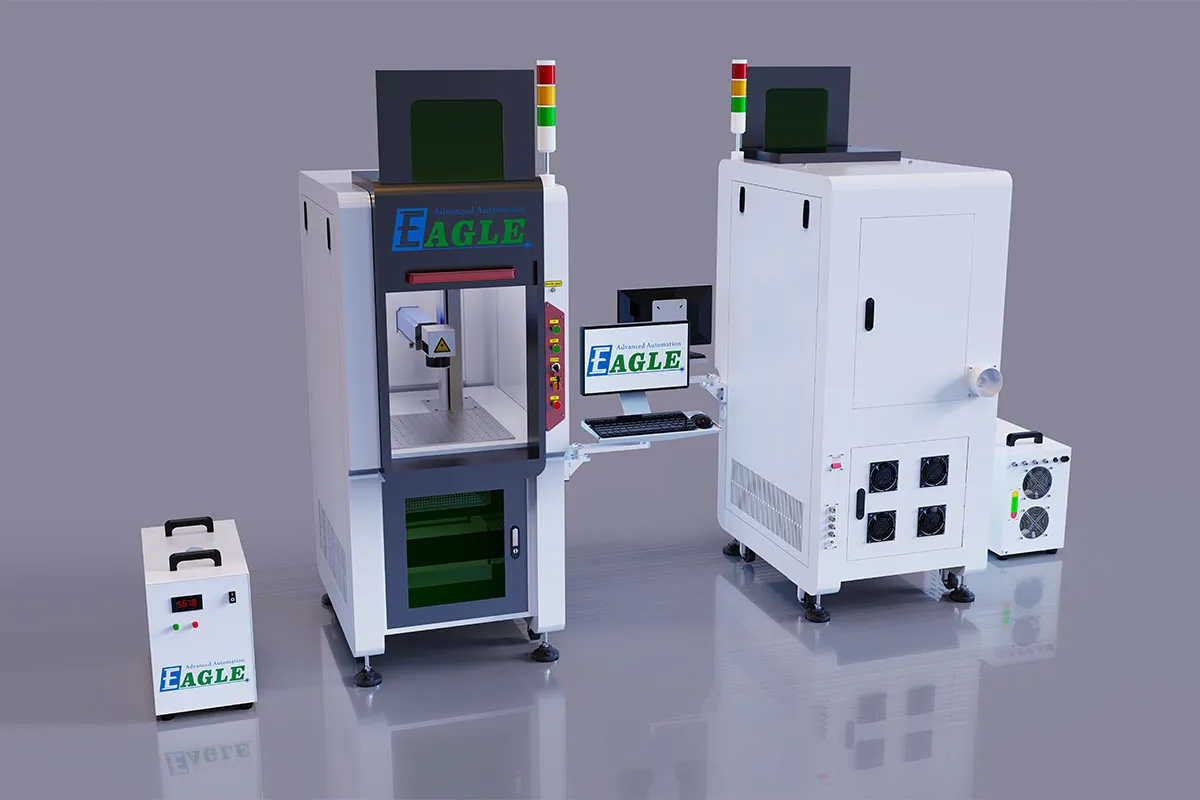

The enclosed fiber laser marking machine offers everything you need for etching and engraving various metals, stones, and tiles. The F1 model features a galvo scanner system that ensures high-speed and precision engraving, available in 30W, 50W, and 100W power options. The lenses are easily interchangeable, providing flexibility for different marking requirements.
| Working Area* | Standard: 110×110mm Optional: 75×75mm / 175×175mm / 200×200mm |
| Working Table | Aluminum plate table with an array of threaded holes for aligning and fixing workpieces |

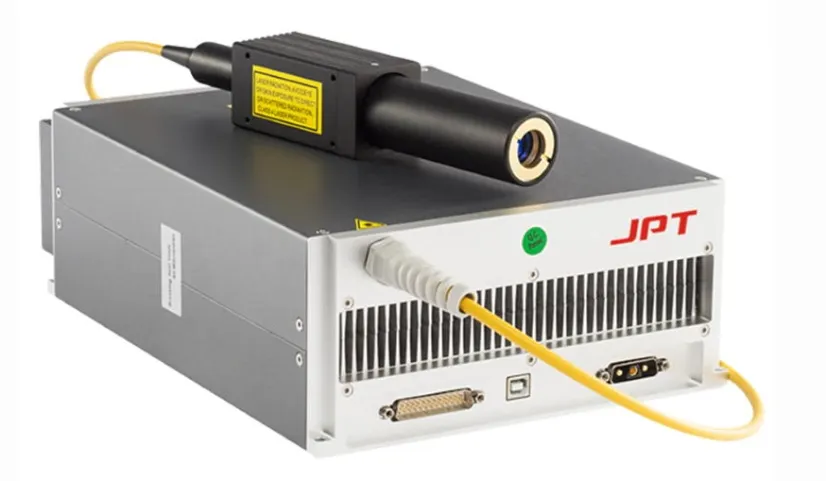

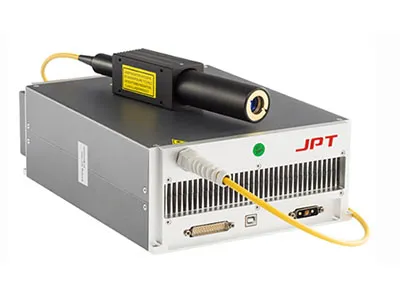

| Laser Source* | MOPA fiber Laser |
| Laser Power* | 30W / 50W / 100W |
| Software | EzCAD CAD/CAM, compatible with Windows 7/8/10 |
| Machine/PC Connection | Integrated industrial PC |
| Control Interface | Direct control in software |
| Motion System | Extremely fast galvo motion system |
| Accessories* | Rotary unit included |
| Electrical Requirement* | 220V/50Hz/60Hz, single phase, up to 2kW |
| Dimensions | 750×1100×1800mm (foldable panel not included) |
Note: All specifications marked with * depend on configurations of the laser machine.

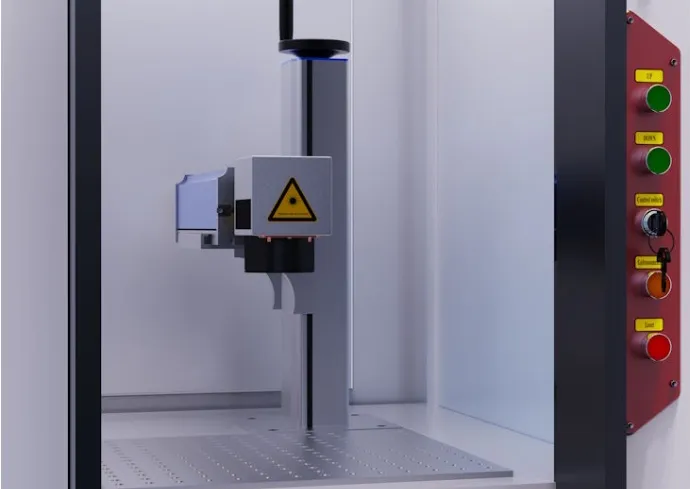

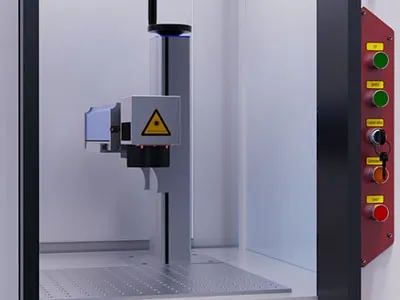

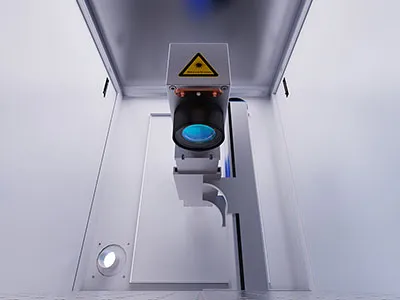

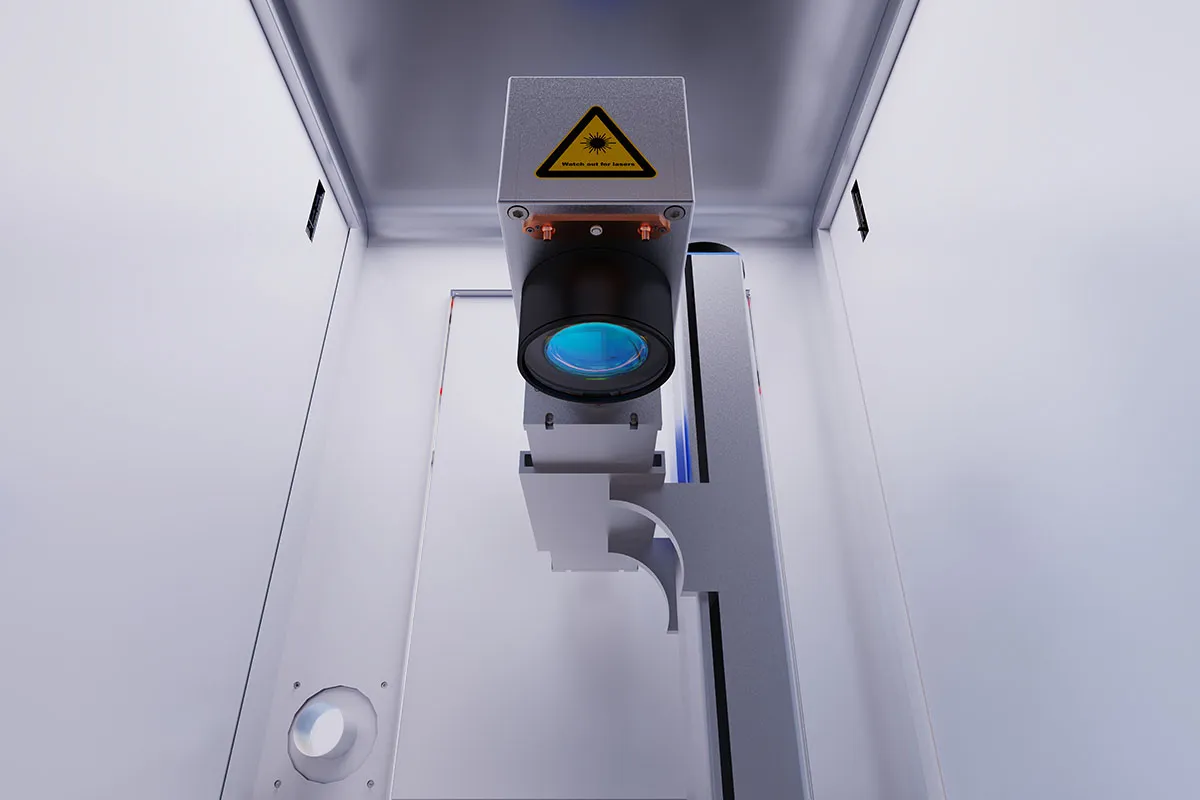

The galvo scanner head can be adjusted vertically to accommodate materials of varying thicknesses and irregularly shaped workpieces. Additionally, it can be equipped with a rotary axis for processing pipes and rods.

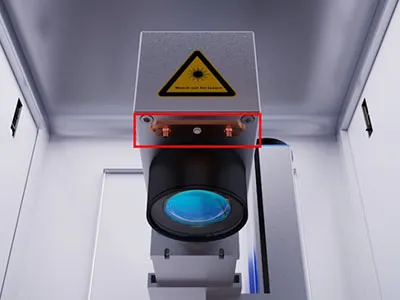

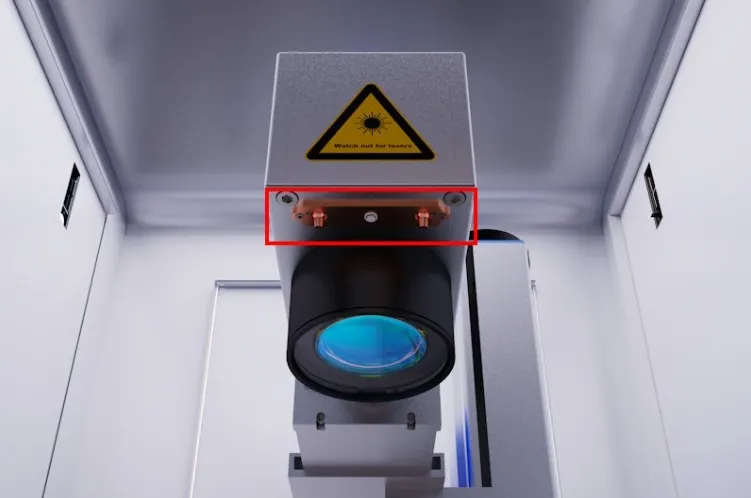

Two integrated and pre-aligned red dot indicators on the scanner head help you quickly and accurately achieve the correct focal point, saving you significant time when working with workpieces of different thicknesses.

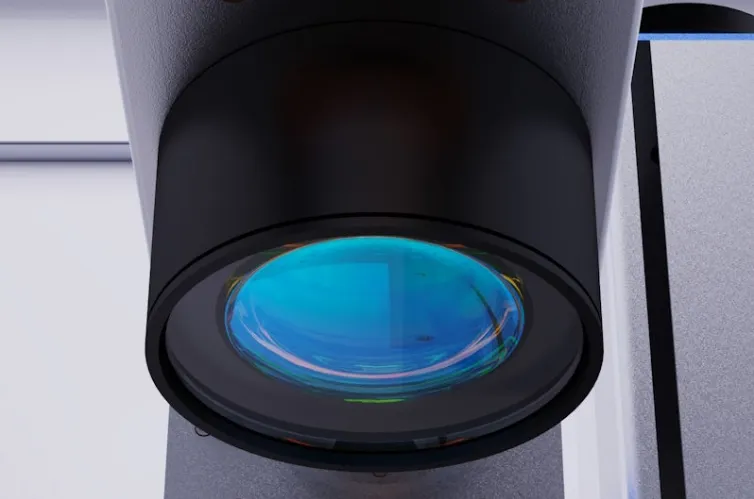

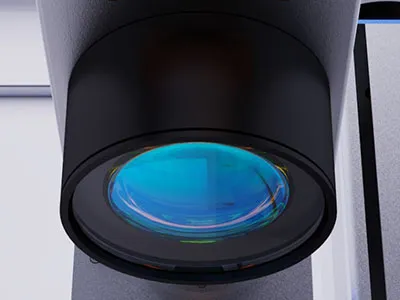

You can adjust the marking area and resolution by changing lenses. Smaller lenses, such as 3 × 3 inches (75 × 75 mm), are ideal for detailed marking, like engraving on jewelry, while larger lenses are better suited for handling larger designs.

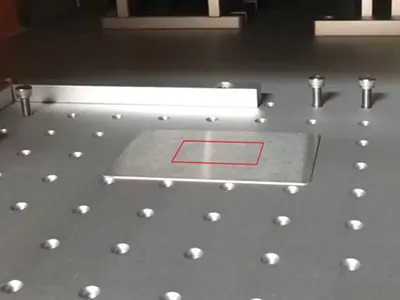

The red dot laser, which is coaxial with the fiber laser, provides a visual reference for the laser emission area through a tracing function. When specific options are activated in the software, it can even trace the outline of your design.

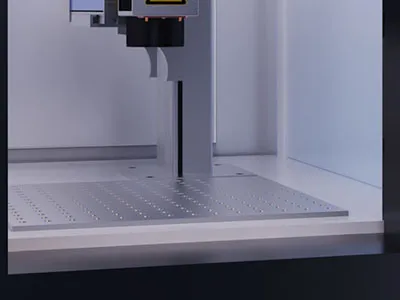

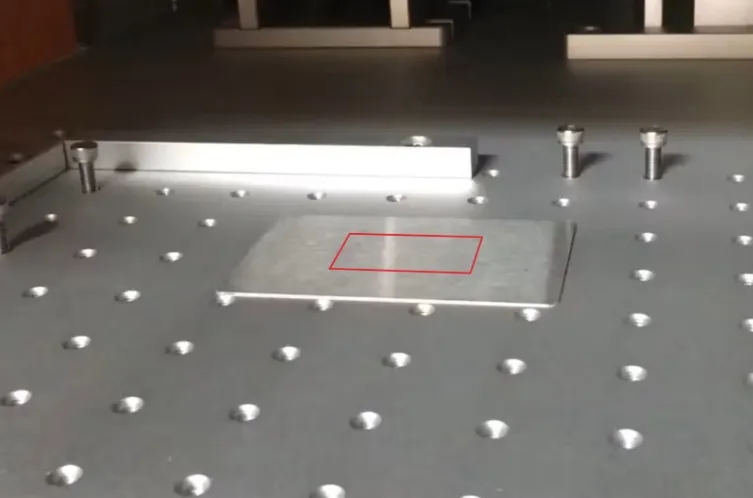

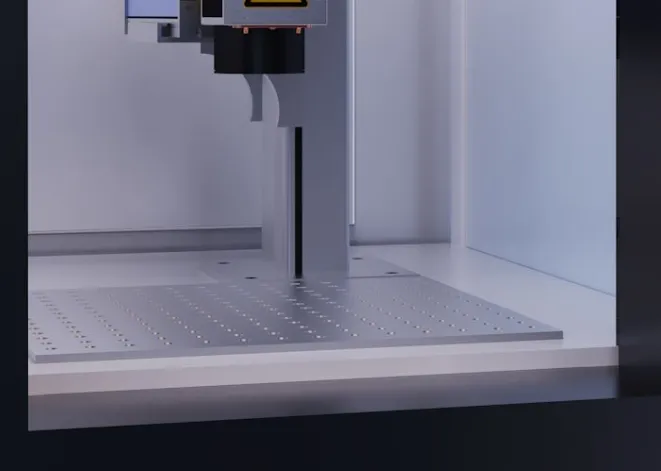

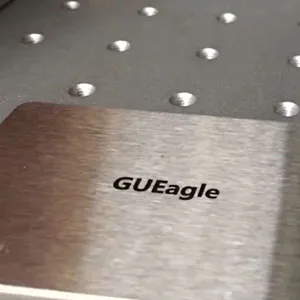

The worktable is equipped with a series of threaded holes, which can be used to secure edge guide rails, align, or fix workpieces. These threaded holes can also be utilized to create custom tooling templates for regular or irregular workpieces.

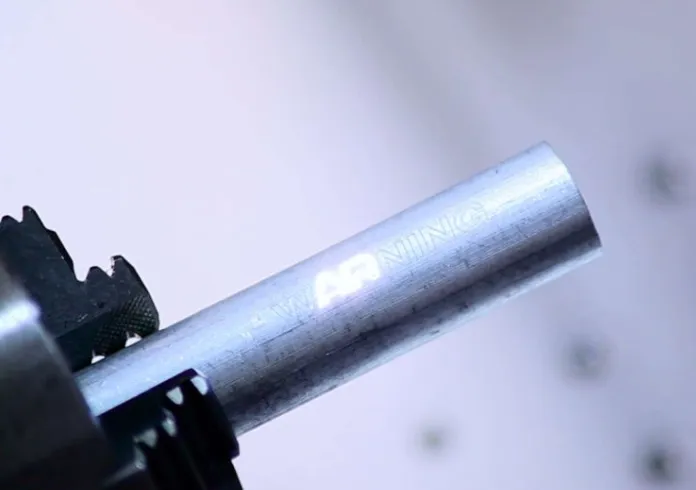

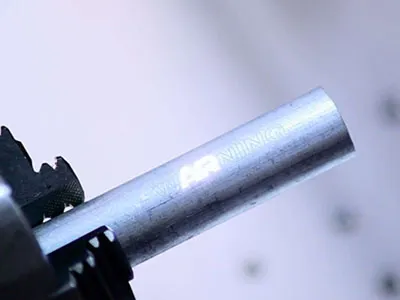

Thanks to the highly adjustable galvo scanner head, this laser can be equipped with a rotary unit, which is used for marking around the circumference of pipes or rods.

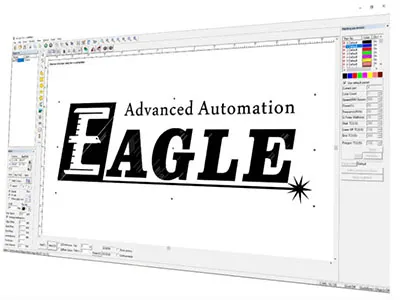

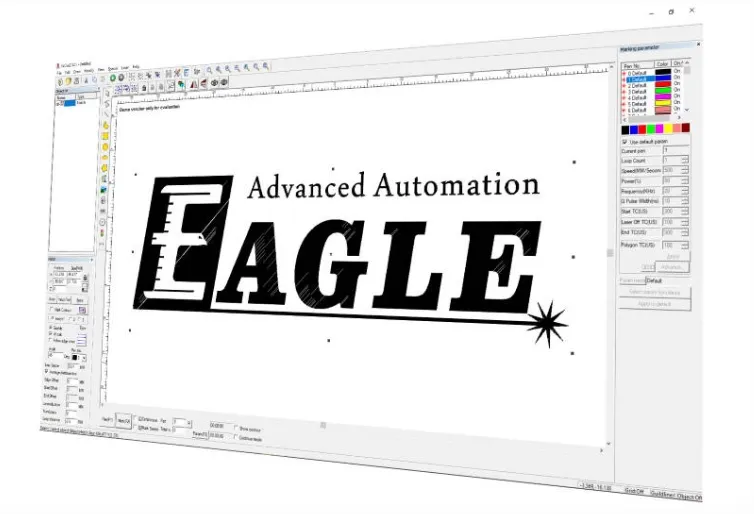

We provide EzCAD software with your laser marking machine, a comprehensive solution for creating, editing, optimizing, and processing laser marking patterns.

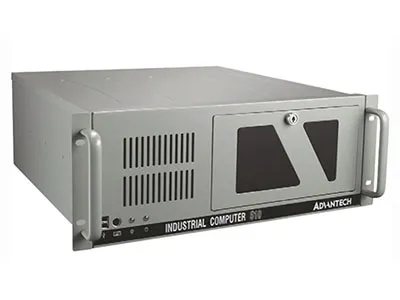

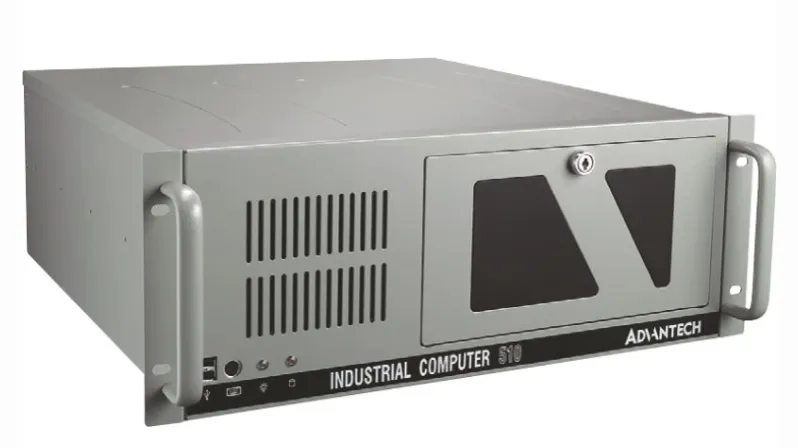

The laser is equipped with an optimized and durable industrial PC, ensuring long-term stable and reliable operation.

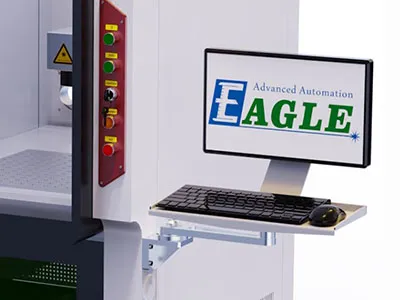

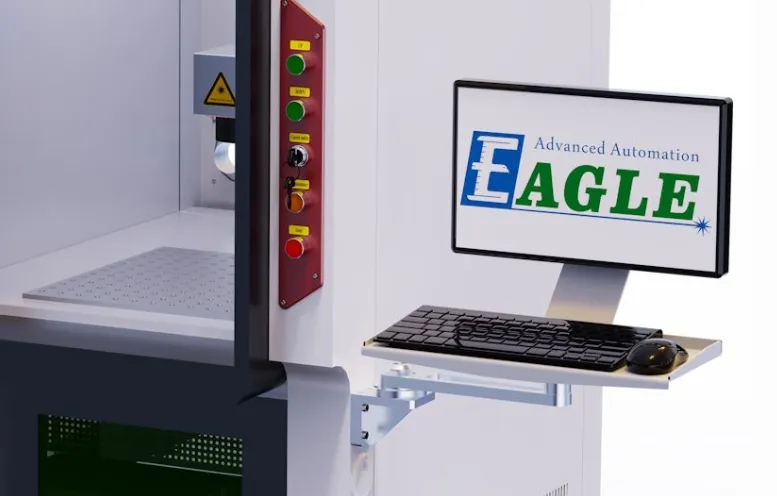

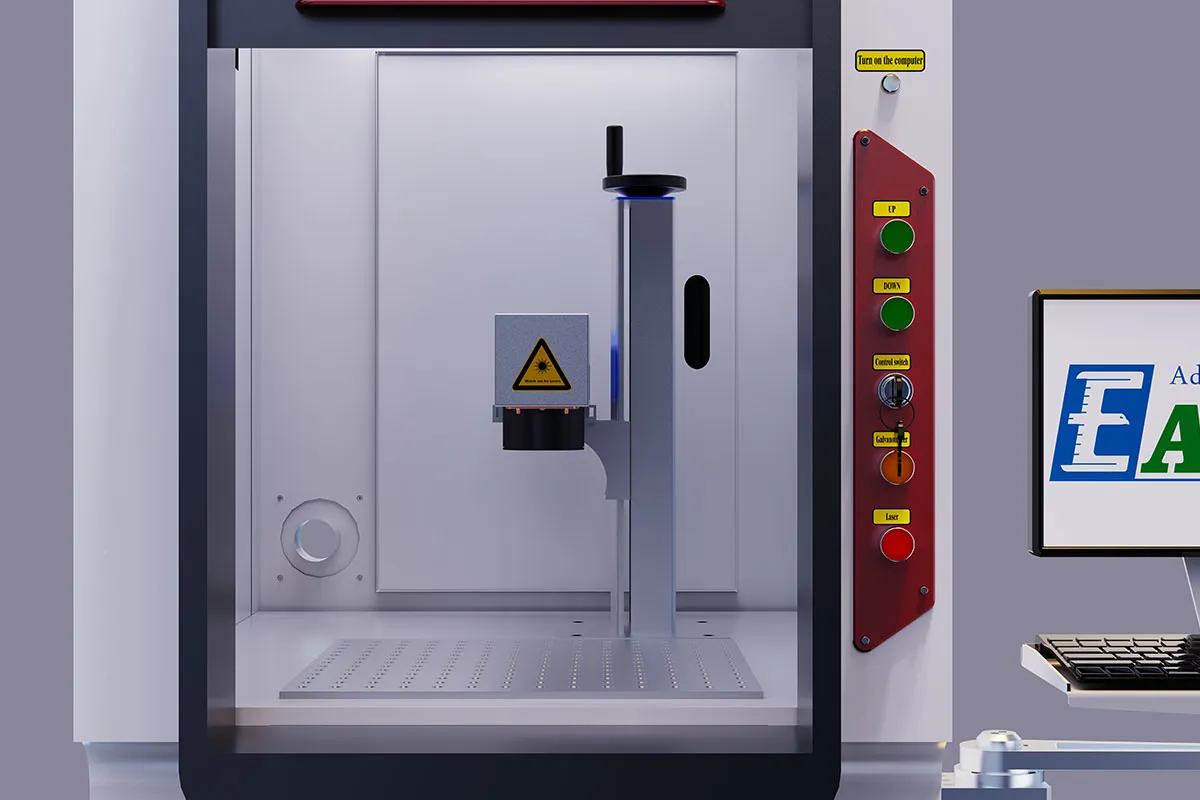

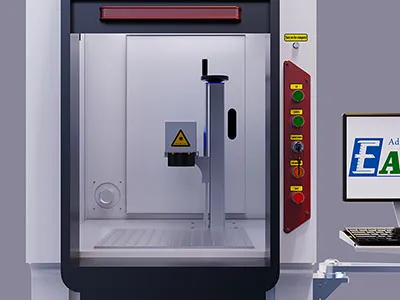

The laser features a user-friendly operator panel, making machine operation simple, straightforward and efficient.

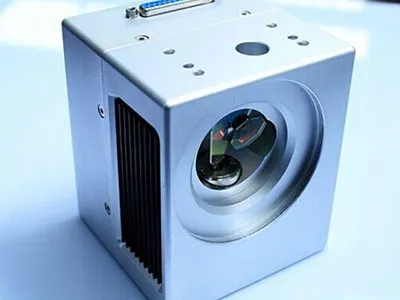

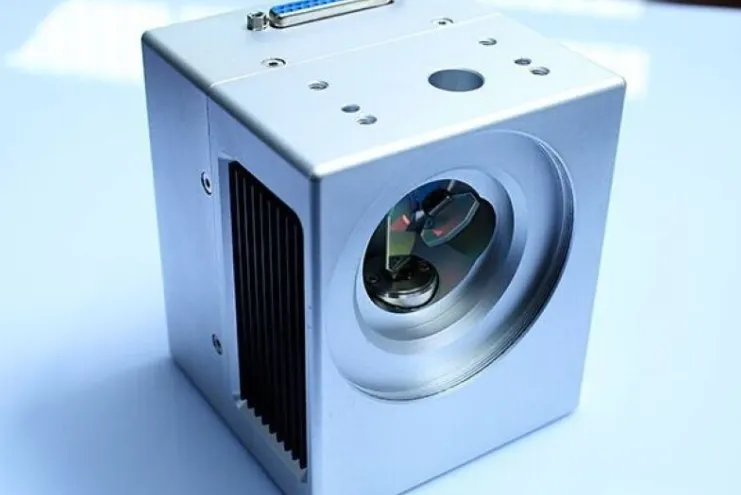

With a galvo system provided by world-leading suppliers, the laser marking speed is exceptionally fast, and the precision is remarkably high.

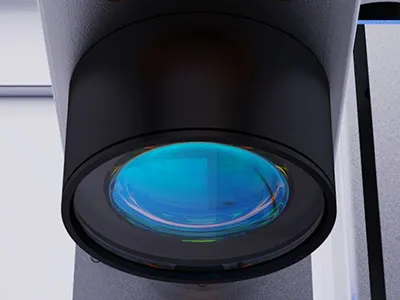

This laser marking machine is equipped with high-quality optics made in the USA, delivering consistent laser beams across the entire marking area.
The fiber laser marking machine is available with either a 30W or 50W fiber laser, offering excellent value for money, productivity, and consistent marking quality.
Yes, our laser marking machines are equipped with comprehensive safety features and fully comply with local safety standards and regulations.

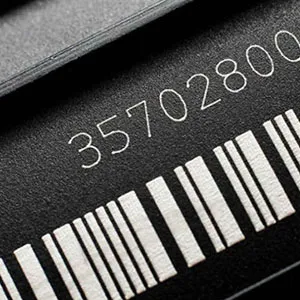

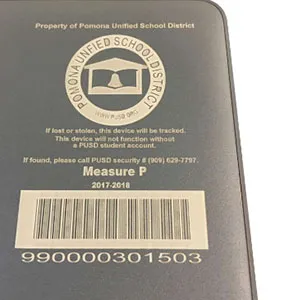

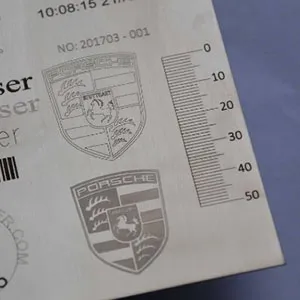

Our software supports a variety of marking functions, including text, graphics, barcodes, and QR codes. Additionally, it offers design, editing, import, and export capabilities, making it a reliable tool for all your marking needs.
Split fiber laser marking machine is our most compact fiber laser marking machine, offering a low-cost yet high-quality solution for businesses transitioning from traditional engraving, etching, and surface marking methods to laser technology.
This laser marking machine features an integrated design with a compact and small footprint, easy to install and operate, making it an ideal choice for a limited workspace.
Our laser machines are designed with advanced, high-precision technology, ensuring consistent performance and accuracy throughout their entire service life
